This blog will show how to create stateful containers in Kubernetes using Amazon EBS. Couchbase Server is a stateful container. This means that state of the container needs to be carried with it. In Kubernetes, the smallest atomic unit of running
a container is a pod. So a Couchbase Server container will run as a pod. And by default, all data stored in Couchbase Server is stored on the same host.

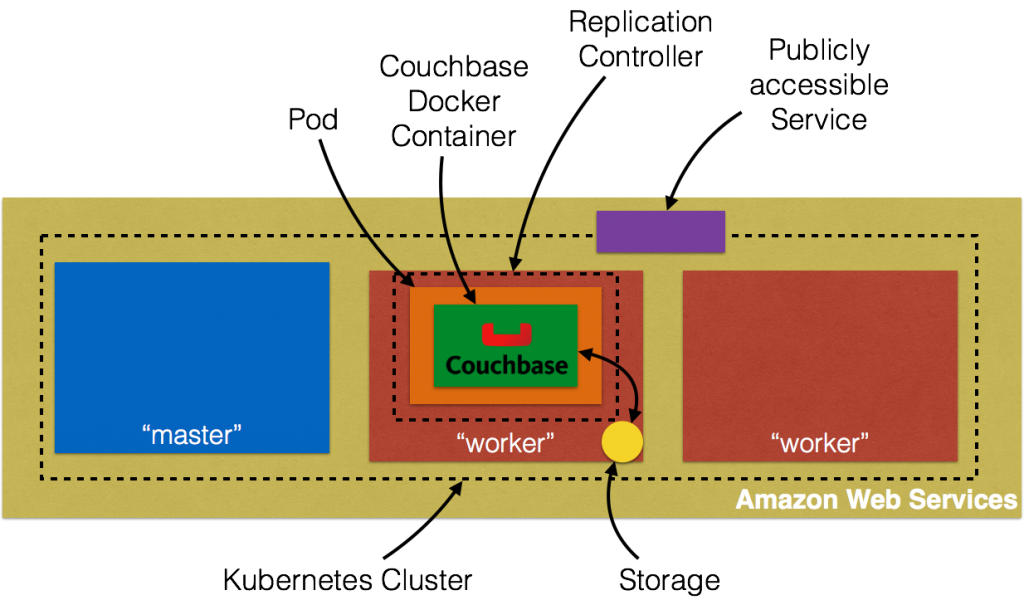

This figure is originally explained in Kubernetes Cluster on Amazon and Expose Couchbase Service. In addition, this figure shows storage local to the host.
Pods are ephemeral and may be restarted on a different host. A Kubernetes Volume outlives any containers that run within the pod, and data is preserved across container restarts. However
the volume will cease to exist when a pod ceases to exist. This is solved by Persistent Volumes that provide persistent, cluster-scoped storage for applications that require long lived data.
- Provision: Administrator provision a networked storage in the cluster, such as AWS ElasticBlockStore volumes. This is called as
PersistentVolume
. - Request storage: User requests storage for pods by using claims. Claims can specify levels of resources (CPU and memory), specific sizes and access modes (e.g. can be mounted once read/write or many times write only).
This is called asPersistentVolumeClaim
. - Use claim: Claims are mounted as volumes and used in pods for storage.
Specifically, this blog will show how to use an AWS ElasticBlockStore as PersistentVolume
, create a PersistentVolumeClaim
, and then claim it in a pod.
Complete source code for this blog is at: github.com/arun-gupta/couchbase-kubernetes.
Provision AWS Elastic Block Storage
Following restrictions need to be met if Amazon ElasticBlockStorage is used as a PersistentVolume with Kubernetes:
- the nodes on which pods are running must be AWS EC2 instances
- those instances need to be in the same region and availability-zone as the EBS volume
- EBS only supports a single EC2 instance mounting a volume
Create an AWS Elastic Block Storage:
1 |
aws ec2 create-volume --region us-west-2 --availability-zone us-west-2a --size 5 --volume-type gp2 |
The region us-west-2
region and us-west-2a
availability zone is used here. And so Kubernetes cluster need to start
in the same region and availability zone as well. This shows the output as:
1 2 3 4 5 6 7 8 9 10 11 |
{ "AvailabilityZone": "us-west-2a", "Encrypted": false, "VolumeType": "gp2", "VolumeId": "vol-47f59cce", "State": "creating", "Iops": 100, "SnapshotId": "", "CreateTime": "2016-07-29T21:57:43.343Z", "Size": 5 } |
Check if the volume is available as:
1 |
aws --region us-west-2 ec2 describe-volumes --volume-id vol-47f59cce |
It shows the output as:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
{ "Volumes": [ { "AvailabilityZone": "us-west-2a", "Attachments": [], "Encrypted": false, "VolumeType": "gp2", "VolumeId": "vol-47f59cce", "State": "available", "Iops": 100, "SnapshotId": "", "CreateTime": "2016-07-29T21:57:43.343Z", "Size": 5 } ] } |
Note the unique identifier for the volume in VolumeId

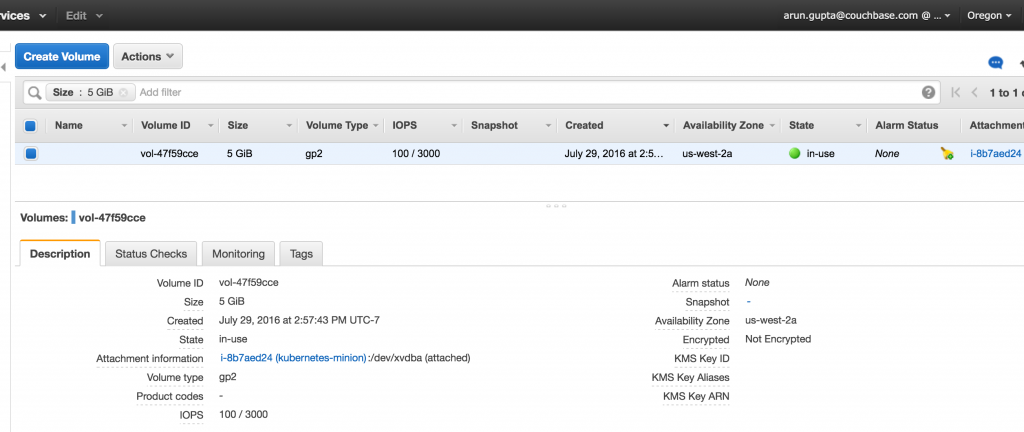

attribute. You can also verify the EBS block in AWS Console:
Start Kubernetes Cluster
Download Kubernetes 1.3.3, untar it and start the cluster on Amazon:
1 2 |
export KUBERNETES_PROVIDER=aws KUBE_AWS_ZONE=us-west-2a NODE_SIZE=m3.large NUM_NODES=3 ./kubernetes/cluster/kube-up.sh |
Three points to note here:
- Zone in which the cluster is started is explicitly set to
us-west-1a
. This matches the zone where EBS storage volume was created. - By default, each node size is
m3.medium
. Here it is set tom3.large
. - By default, 1 master and 4 worker nodes are created. Here only 3 worker nodes are created.
This will show the output as:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 |
... Starting cluster in us-west-2a using provider aws ... calling verify-prereqs ... calling kube-up Starting cluster using os distro: jessie Uploading to Amazon S3 +++ Staging server tars to S3 Storage: kubernetes-staging-0eaf81fbc51209dd47c13b6d8b424149/devel upload: ../../../../../var/folders/81/ttv4n16x7p390cttrm_675y00000gn/T/kubernetes.XXXXXX.ISohbaGM/s3/bootstrap-script to s3://kubernetes-staging-0eaf81fbc51209dd47c13b6d8b424149/devel/bootstrap-script Uploaded server tars: SERVER_BINARY_TAR_URL: https://s3.amazonaws.com/kubernetes-staging-0eaf81fbc51209dd47c13b6d8b424149/devel/kubernetes-server-linux-amd64.tar.gz SALT_TAR_URL: https://s3.amazonaws.com/kubernetes-staging-0eaf81fbc51209dd47c13b6d8b424149/devel/kubernetes-salt.tar.gz BOOTSTRAP_SCRIPT_URL: https://s3.amazonaws.com/kubernetes-staging-0eaf81fbc51209dd47c13b6d8b424149/devel/bootstrap-script INSTANCEPROFILE arn:aws:iam::598307997273:instance-profile/kubernetes-master 2016-07-29T15:13:35Z AIPAJF3XKLNKOXOTQOCTkubernetes-master / ROLES arn:aws:iam::598307997273:role/kubernetes-master 2016-07-29T15:13:33Z / AROAI3Q2KFBD5PCKRXCRM kubernetes-master ASSUMEROLEPOLICYDOCUMENT 2012-10-17 STATEMENT sts:AssumeRole Allow PRINCIPAL ec2.amazonaws.com INSTANCEPROFILE arn:aws:iam::598307997273:instance-profile/kubernetes-minion 2016-07-29T15:13:39Z AIPAIYSH5DJA4UPQIP4Bkubernetes-minion / ROLES arn:aws:iam::598307997273:role/kubernetes-minion 2016-07-29T15:13:37Z / AROAIQ57MPQYSHRPQCT2Q kubernetes-minion ASSUMEROLEPOLICYDOCUMENT 2012-10-17 STATEMENT sts:AssumeRole Allow PRINCIPAL ec2.amazonaws.com Using SSH key with (AWS) fingerprint: SHA256:dX/5wpWuUxYar2NFuGwiZuRiydiZCyx4DGoZ5/jL/j8 Creating vpc. Adding tag to vpc-fa3d6c9e: Name=kubernetes-vpc Adding tag to vpc-fa3d6c9e: KubernetesCluster=kubernetes Using VPC vpc-fa3d6c9e Adding tag to dopt-3aad625e: Name=kubernetes-dhcp-option-set Adding tag to dopt-3aad625e: KubernetesCluster=kubernetes Using DHCP option set dopt-3aad625e Creating subnet. Adding tag to subnet-e11f5985: KubernetesCluster=kubernetes Using subnet subnet-e11f5985 Creating Internet Gateway. Using Internet Gateway igw-5c748f38 Associating route table. Creating route table Adding tag to rtb-84fcf1e0: KubernetesCluster=kubernetes Associating route table rtb-84fcf1e0 to subnet subnet-e11f5985 Adding route to route table rtb-84fcf1e0 Using Route Table rtb-84fcf1e0 Creating master security group. Creating security group kubernetes-master-kubernetes. Adding tag to sg-91590bf7: KubernetesCluster=kubernetes Creating minion security group. Creating security group kubernetes-minion-kubernetes. Adding tag to sg-9d590bfb: KubernetesCluster=kubernetes Using master security group: kubernetes-master-kubernetes sg-91590bf7 Using minion security group: kubernetes-minion-kubernetes sg-9d590bfb Creating master disk: size 20GB, type gp2 Adding tag to vol-def79e57: Name=kubernetes-master-pd Adding tag to vol-def79e57: KubernetesCluster=kubernetes Allocated Elastic IP for master: 52.40.216.69 Adding tag to vol-def79e57: kubernetes.io/master-ip=52.40.216.69 Generating certs for alternate-names: IP:52.40.216.69,IP:172.20.0.9,IP:10.0.0.1,DNS:kubernetes,DNS:kubernetes.default,DNS:kubernetes.default.svc,DNS:kubernetes.default.svc.cluster.local,DNS:kubernetes-master Starting Master Adding tag to i-5a7cebf5: Name=kubernetes-master Adding tag to i-5a7cebf5: Role=kubernetes-master Adding tag to i-5a7cebf5: KubernetesCluster=kubernetes Waiting for master to be ready Attempt 1 to check for master nodeWaiting for instance i-5a7cebf5 to be running (currently pending) Sleeping for 3 seconds... Waiting for instance i-5a7cebf5 to be running (currently pending) Sleeping for 3 seconds... Waiting for instance i-5a7cebf5 to be running (currently pending) Sleeping for 3 seconds... Waiting for instance i-5a7cebf5 to be running (currently pending) Sleeping for 3 seconds... [master running] Attaching IP 52.40.216.69 to instance i-5a7cebf5 Attaching persistent data volume (vol-def79e57) to master 2016-07-29T22:00:36.909Z /dev/sdb i-5a7cebf5 attaching vol-def79e57 cluster "aws_kubernetes" set. user "aws_kubernetes" set. context "aws_kubernetes" set. switched to context "aws_kubernetes". user "aws_kubernetes-basic-auth" set. Wrote config for aws_kubernetes to /Users/arungupta/.kube/config Creating minion configuration Creating autoscaling group 0 minions started; waiting 0 minions started; waiting 0 minions started; waiting 0 minions started; waiting 3 minions started; ready Waiting for cluster initialization. This will continually check to see if the API for kubernetes is reachable. This might loop forever if there was some uncaught error during start up. ..........................................................................................................................................................................................................Kubernetes cluster created. Sanity checking cluster... Attempt 1 to check Docker on node @ 52.42.0.65 ...not working yet Attempt 2 to check Docker on node @ 52.42.0.65 ...not working yet Attempt 3 to check Docker on node @ 52.42.0.65 ...working Attempt 1 to check Docker on node @ 52.36.195.201 ...working Attempt 1 to check Docker on node @ 52.43.35.173 ...working Kubernetes cluster is running. The master is running at: https://52.40.216.69 The user name and password to use is located in /Users/arungupta/.kube/config. ... calling validate-cluster Found 3 node(s). NAME STATUS AGE ip-172-20-0-26.us-west-2.compute.internal Ready 1m ip-172-20-0-27.us-west-2.compute.internal Ready 1m ip-172-20-0-28.us-west-2.compute.internal Ready 1m Validate output: NAME STATUS MESSAGE ERROR controller-manager Healthy ok scheduler Healthy ok etcd-0 Healthy {"health": "true"} etcd-1 Healthy {"health": "true"} Cluster validation succeeded Done, listing cluster services: Kubernetes master is running at https://52.40.216.69 Elasticsearch is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/elasticsearch-logging Heapster is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/heapster Kibana is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/kibana-logging KubeDNS is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/kube-dns kubernetes-dashboard is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard Grafana is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana InfluxDB is running at https://52.40.216.69/api/v1/proxy/namespaces/kube-system/services/monitoring-influxdb To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'. |
Read more details about starting a Kubernetes cluster on Amazon.
Couchbase Server Pod w/o Persistent Storage
Let’s create a Couchbase Server pod without persistent storage. This means that if the pod is rescheduled on a different host then it will not have access to the data created on it. Here are quick steps to run a Couchbase Server pod and
expose it outside the cluster:
1 2 3 |
kubectl.sh run couchbase --image=arungupta/couchbase kubectl.sh expose deployment couchbase --target-port=8091 --port=8091 --type=LoadBalancer kubectl.sh describe svc couchbase |
Read more details at Kubernetes cluster at Amazon. The last command shows the ingress load balancer address. Access Couchbase Server Web Console at :8091
.
Login to the console using Administrator
login and password

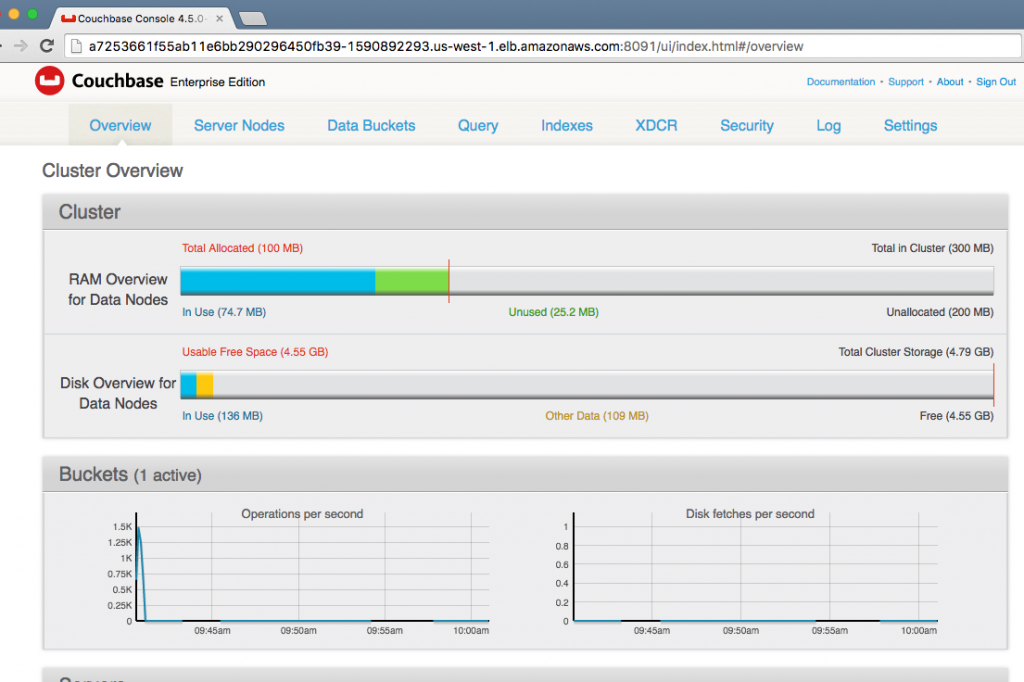

password. The main page of Couchbase Server Web Console shows up:
A default travel-sample

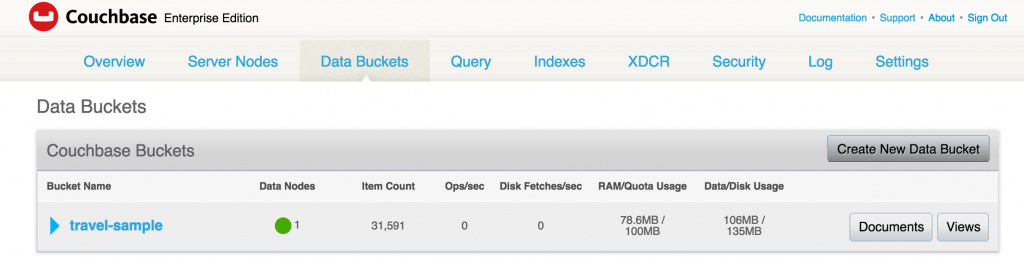

bucket is already created by arungupta/couchbase image. This bucket is shown in the Data Buckets
tab:
Click on Create New Data Bucket
button to create a new data bucket. Give it a name k8s
, take all the defaults, and click on Create
button to create the bucket:
Created bucket is shown in the Data Buckets
tab:
Check status of the pod:
1 2 3 |
kubectl.sh get po NAME READY STATUS RESTARTS AGE couchbase-2646907196-memz2 1/1 Running 0 53m |
Delete the pod:
1 2 |
kubectl.sh delete po couchbase-2646907196-memz2 pod "couchbase-2646907196-memz2" deleted |
Watch the new pod being created:
1 2 3 4 |
kubectl.sh get -w po NAME READY STATUS RESTARTS AGE couchbase-2646907196-memz2 1/1 Terminating 0 53m couchbase-2646907196-wo6ve 1/1 Running 0 3s |
Access the Web Console again and see that the bucket does not exist:
Let’s clean up the resources created:
1 2 |
kubectl.sh delete svc couchbase kubectl.sh delete deployment couchbase |
Couchbase Server Pod with Persistent Storage
Now, lets expose a Couchbase Server pod with persistent storage. As discussed above, lets create a PersistentVolume
and claim the volume.
Request storage
Like any other Kubernetes resources, a persistent volume is created by using a resource description file:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
kind: PersistentVolume apiVersion: v1 metadata: name: couchbase-pv labels: type: amazonEBS spec: capacity: storage: 5Gi accessModes: - ReadWriteOnce awsElasticBlockStore: volumeID: vol-47f59cce fsType: ext4 |
The important pieces of information here are:
- Creating a storage of 5 GB
- Storage can be mounted by only one node for reading/writing
- specifies the volume id created earlier
Read more details about definition of this file at kubernetes.io/docs/user-guide/persistent-volumes/. This file is available at: github.com/arun-gupta/couchbase-kubernetes/blob/master/pv/couchbase-pv.yml.
The volume itself can be created as:
1 |
kubectl create -f couchbase-pv.yml |
and shows the output:
1 |
persistentvolume "couchbase-pv" created |
Use claim
A PersistentVolumeClaim
can be created using this resource file:
1 2 3 4 5 6 7 8 9 10 11 12 |
kind: PersistentVolumeClaim apiVersion: v1 metadata: name: couchbase-pvc labels: type: amazonEBS spec: accessModes: - ReadWriteOnce resources: requests: storage: 5Gi |
In our case, both PersistentVolume and PersistentVolumeClaim are 5 GB but they don’t have to be. Read more details about definition of this file at kubernetes.io/docs/user-guide/persistent-volumes/#persistentvolumeclaims.
This file is at github.com/arun-gupta/couchbase-kubernetes/blob/master/pv/couchbase-pvc.yml. The claim can be created as:
1 |
kubectl create -f couchbase-pvc.yml |
and shows the output:
1 |
persistentvolumeclaim "couchbase-pvc" created |
Create RC with Persistent Volume Claim
Create a Couchbase Replication Controller using this resource file:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
apiVersion: v1 kind: ReplicationController metadata: name: couchbase spec: replicas: 1 template: metadata: name: couchbase-rc-pod labels: name: couchbase-rc-pod context: couchbase-pv spec: containers: - name: couchbase-rc-pod image: arungupta/couchbase volumeMounts: - mountPath: "/opt/couchbase/var" name: mypd ports: - containerPort: 8091 - containerPort: 8092 - containerPort: 8093 - containerPort: 11210 volumes: - name: mypd persistentVolumeClaim: claimName: couchbase-pvc |
Key parts here are:
- Resource defines a Replication Controller using
arungupta/couchbase
Docker image volumeMounts
define which volumes are going to be mounted./opt/couchbase/var
is the directory where Couchbase Server stores all the data.volumes
define different volumes that can be used in this RC definition
Create the RC as:
1 |
kubectl create -f couchbase-rc.yml |
and shows the output:
1 |
replicationcontroller "couchbase" created |
Check for pod as kubectl.sh get -w po
to see:
1 2 3 4 5 |
kubectl.sh get -w po NAME READY STATUS RESTARTS AGE couchbase-jx3fn 0/1 ContainerCreating 0 3s NAME READY STATUS RESTARTS AGE couchbase-jx3fn 1/1 Running 0 20s |
Expose RC as a service:
1 2 |
kubectl.sh expose rc couchbase --target-port=8091 --port=809--type=LoadBalancer service "couchbase" exposed |
Get all the services:
1 2 3 4 |
kubectl.sh get svc NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE couchbase 10.0.49.129 a6179426155e2... 8091/TCP 19s kubernetes 10.0.0.1 443/TCP 1h |
Describe the service as kubectl.sh describe svc couchbase
to see:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
Name: couchbase Namespace: default Labels: context=couchbase-pv name=couchbase-pod Selector: context=couchbase-pv,name=couchbase-pod Type: LoadBalancer IP: 10.0.49.129 LoadBalancer Ingress: a6179426155e211e6b664022b850255f-1850736155.us-west-2.elb.amazonaws.com Port: 8091/TCP NodePort: 31636/TCP Endpoints: 10.244.1.3:8091 Session Affinity: None Events: FirstSeen LastSeen Count From SubobjectPath Type Reason Message --------- -------- ----- ---- ------------- -------- ------ ------- 31s 31s 1 {service-controller } Normal CreatingLoadBalancer Creating load balancer 29s 29s 1 {service-controller } Normal CreatedLoadBalancer Created load balancer |
Wait for ~3 mins for the load balancer to settle. Access the Couchbase Server Web Console at :8091
. Once again, only travel-sample
bucket exists. This is created by arungupta/couchbase
image used in the RC definition.
Show Stateful Containers
Lets create a new bucket. Give it a name kubernetes-pv
, take all defaults and click on Create button to create the bucket.

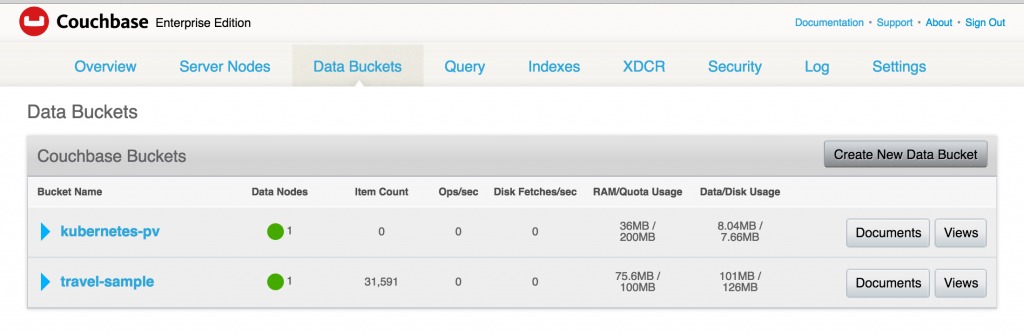

The bucket now shows up in the console:
Terminate Couchbase Server pod and see the state getting restored. Get the pods again:
1 2 3 |
kubectl.sh get po NAME READY STATUS RESTARTS AGE couchbase-jx3fn 1/1 Running 0 7m |
Delete the pod:
1 2 |
kubectl.sh delete po couchbase-jx3fn pod "couchbase-jx3fn" deleted |
Pod gets recreated:
1 2 3 4 5 6 |
kubectl.sh get -w po NAME READY STATUS RESTARTS AGE couchbase-jx3fn 1/1 Terminating 0 8m couchbase-qq6wu 0/1 ContainerCreating 0 4s NAME READY STATUS RESTARTS AGE couchbase-qq6wu 1/1 Running 0 5s |
And now when you access the Couchbase Web Console, the earlier created bucket still exists:
That’s because the data was stored in the backing EBS storage.
Cleanup Kubernetes Cluster
Shutdown Kubernetes cluster:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 |
KUBE_AWS_ZONE=us-west-2a NODE_SIZE=m3.large NUM_NODES=3 ./kubernetes/cluster/kube-down.sh Bringing down cluster using provider: aws Deleting ELBs in: vpc-fa3d6c9e Waiting for ELBs to be deleted All ELBs deleted Deleting instances in VPC: vpc-fa3d6c9e Deleting auto-scaling group: kubernetes-minion-group-us-west-2a Deleting auto-scaling launch configuration: kubernetes-minion-group-us-west-2a Deleting auto-scaling group: kubernetes-minion-group-us-west-2a Deleting auto-scaling group: kubernetes-minion-group-us-west-2a Waiting for instances to be deleted Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... Waiting for instance i-8b7aed24 to be terminated (currently shutting-down) Sleeping for 3 seconds... All instances deleted Releasing Elastic IP: 52.40.216.69 Deleting volume vol-def79e57 Cleaning up resources in VPC: vpc-fa3d6c9e Cleaning up security group: sg-91590bf7 Cleaning up security group: sg-9d590bfb Cleaning up security group: sg-e97b298f Deleting security group: sg-91590bf7 Deleting security group: sg-9d590bfb Deleting security group: sg-e97b298f Deleting VPC: vpc-fa3d6c9e Done |
And detach the volume:
1 |
aws ec2 delete-volume --region us-west-2 --volume-id vol-47f59cce |
Complete source code for this blog is at: github.com/arun-gupta/couchbase-kubernetes.
Enjoy!
